Keller America Pressure Transducers

  • Updated on Sep 9, 2024
  • Published on Apr 15, 2024
  • 1 minute(s) read
Prev Next

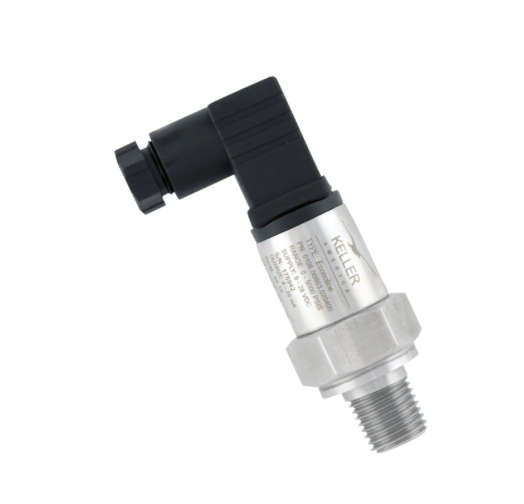

Keller America Pressure Transducer

ECONOLINE/03-00116-02/150PSIG/0.5-4.5VDC RATIO/6' PVC

Key Specifications

Operating Temperature

-20…125°C

Water Resistance rating

IP65

Pressure Range

150PSIG

Total Error Band (For 0...50°C)

±1.0% FS Max

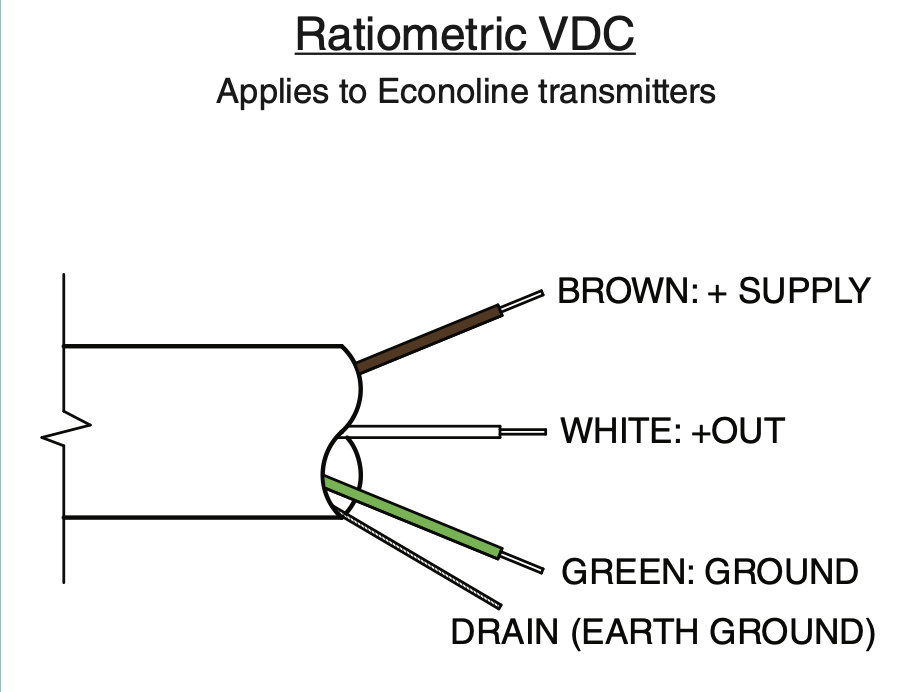

Wiring

Keller Pressure Transducer

Verdi Junction Box

Brown wire connects to →

5V (pin 6)

White wire connects to →

S1 (pin 4) or S2 (pin 2)

Green wire connects to →

GND (pin 1 or pin 3)

Additional notes

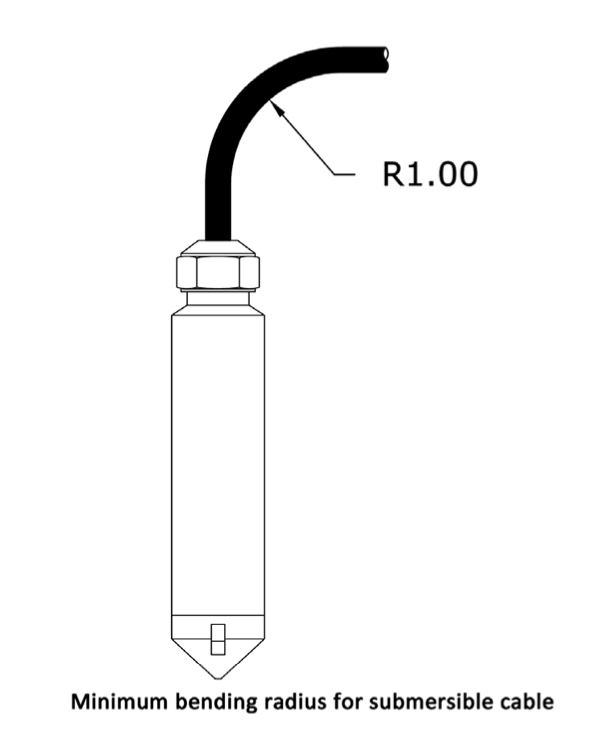

  • Bending of Cable - Jacketed cable is quite flexible. However, care must be taken to ensure the vent tube integral to the cable is not crimped when bending the cable to suit your installation. It is recommended that the cable not be bent to a radius smaller than 1 inch.

  • If there is a connector such as M12, mPm393, 3-pin Metri Pack, snip it off to expose cable

  • More details can be found here: https://www.kelleramerica.com/product?id=5e2f29279d8b1060a188c376
